KEF Ci3160RLM-THX is a passive inwall that cost around 2230 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity:
    • Company: 89.0 dB
    • Measured: 87.8 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 58.6Hz (resp. 45.4Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.8dB over the same frequency range.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for inwall speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 5.17 and would be 7.69 with a perfect subwoofer.
      • Details: NBD: ON 0.408, LW 0.318, SP 0.306, PIR 0.291; SM: SP0.924, PIR0.819; LFQ 3.091, LFX 55Hz
  • Link to original Review: asr review. .

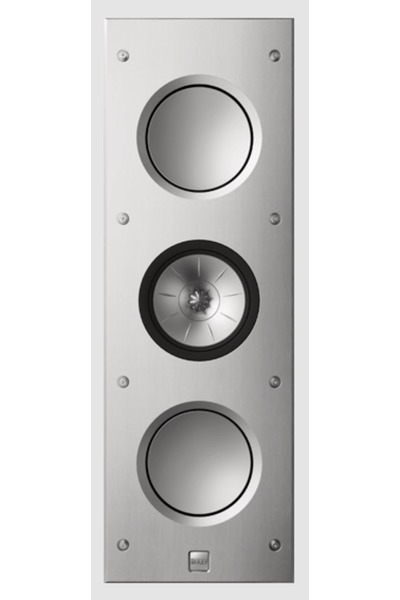

KEF Ci3160RLM-THX

Vendor specifications

  • Impedance 4.0 Ohm
  • SPL
    • max: 110.0 dB
  • Size
    • Width 230.0mm
    • Height 680.0mm
    • Depth 106.0mm
  • Weight 12.0kg

Directivity (-6dB)

Quick config:
;
