What we know about the measurement:

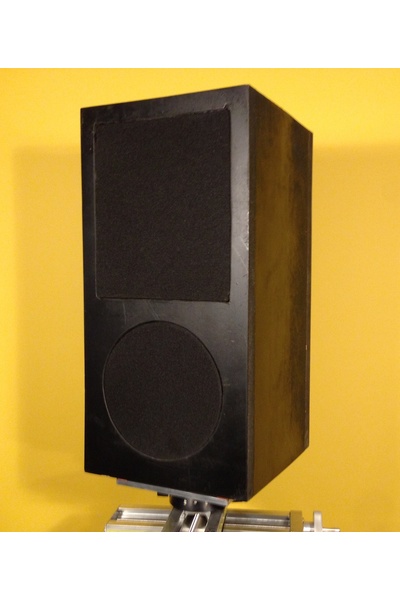

JansZen Loudspeaker zA1.1 is a passive bookshelves

  • Quality of the measurement data is low.
  • Origin of the data is Princeton.
  • Format of the data is .
  • Sensitivity: 84.4dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • Reference level is normalised to 1.7dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.66 and would be 7.33 with a perfect subwoofer.
      • Details: NBD: ON 0.347, LW 0.439, SP 0.767, PIR 0.523; SM: SP0.92, PIR0.895; LFQ 10.0, LFX 509Hz
    • Tonality (Preference) Score is 1.25 with an EQ and would be 7.91 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.308, LW 0.269, SP 0.641, PIR 0.358; SM: SP0.913, PIR0.894; LFQ 10.0, LFX 509Hz
  • Link to Original review.
JansZen Loudspeaker zA1.1
AutomaticEQ (IIR)
Set preamp gain to: -0.0dB.
Type Freq Q Gain
3 28.0 0.27 -8.97
3 33.0 0.26 -9.0
3 41.0 0.27 -8.93
3 49.0 0.27 -8.75
3 58.0 0.25 -8.87
3 1760.0 1.25 -4.79
3 4194.0 1.4 -2.14
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JansZen Loudspeaker zA1.1 filters_auto_eq

AutomaticEQ

JansZen Loudspeaker zA1.1 filters_eq_full

Target v.s. EQ

JansZen Loudspeaker zA1.1
Graphic EQ 15 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
3 25.0 2.14 0.0
3 40.0 2.14 0.0
3 63.0 2.14 0.0
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.5
3 1000.0 2.14 0.5
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.5
3 6300.0 2.14 0.75
3 10000.0 2.14 1.0
3 16000.0 2.14 1.0
Download

These EQ is designed for a 15 bands graphical EQ.

JansZen Loudspeaker zA1.1
Graphic EQ 31 bands
Set preamp gain to: -1.3dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.0
3 31.0 4.32 0.0
3 40.0 4.32 0.0
3 50.0 4.32 0.0
3 63.0 4.32 0.0
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.5
3 800.0 4.32 0.5
3 1000.0 4.32 0.5
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.5
3 5000.0 4.32 0.5
3 6300.0 4.32 0.75
3 8000.0 4.32 0.75
3 10000.0 4.32 1.0
3 12000.0 4.32 1.0
3 16000.0 4.32 1.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

JansZen Loudspeaker zA1.1: comparison between EQs
JansZen Loudspeaker zA1.1

Comparison betweens various EQs

JansZen Loudspeaker zA1.1

Improvements made by EQ
