What we know about the measurement:

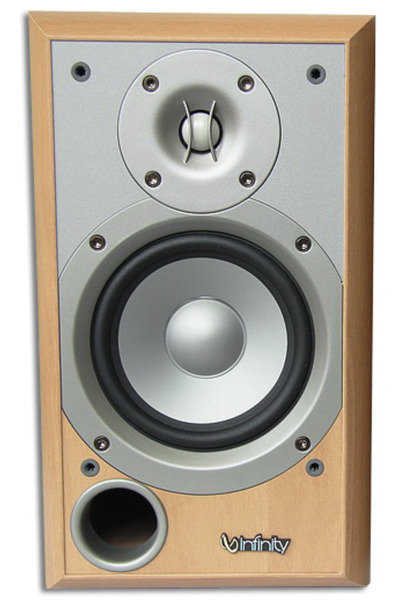

Infinity Primus 150 is a passive floorstanders that cost around 200 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 75.3dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 68.3Hz (resp. 62.6Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.19 and would be 7.03 with a perfect subwoofer.
      • Details: NBD: ON 0.431, LW 0.386, SP 0.411, PIR 0.368; SM: SP0.844, PIR0.66; LFQ 2.159, LFX 66Hz
    • Tonality (Preference) Score is 4.95 with an EQ and would be 7.77 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.325, LW 0.282, SP 0.326, PIR 0.277; SM: SP0.883, PIR0.744; LFQ 2.159, LFX 65Hz
  • Link to original Review: asr review. .
  • Vendor specifications:
    • Sensitivity 88 dB
    • Impedance 8 Ohm
    • Size
      • Width 187mm
      • Height 322mm
      • Depth 252mm
    • Weight 6kg
Infinity Primus 150
AutomaticEQ (IIR)
Set preamp gain to: -1.7dB.
Type Freq Q Gain
PK 98.0 2.29 -1.71
PK 139.0 1.15 -2.88
PK 155.0 0.26 1.92
PK 409.0 0.87 -2.23
PK 504.0 2.95 1.45
PK 792.0 1.12 3.0
PK 879.0 2.99 -4.1
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Infinity Primus 150 filters_auto_eq

AutomaticEQ

Infinity Primus 150 filters_eq_full

Target v.s. EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
