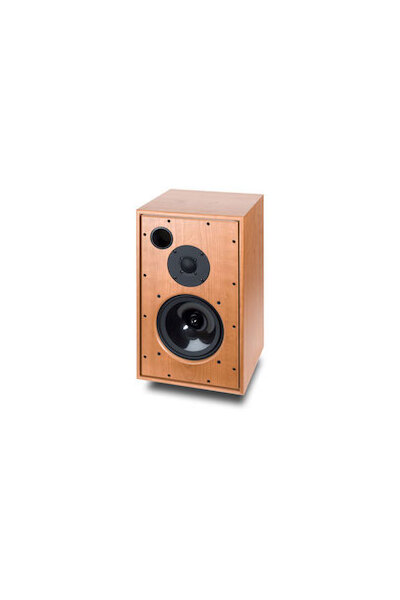

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 88.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 64.5Hz (resp. 56.4Hz).
-
Reference level is normalised to -0.6dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 4.0dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-50.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-10.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.04
and would be 7.5 with a
perfect subwoofer.
- Details:
NBD: ON 0.45,
LW 0.432, SP
0.427, PIR
0.407; SM:
SP0.946,
PIR0.932; LFQ
1.0, LFX 54Hz
- Tonality (Preference) Score is 5.92
with an EQ and would be 8.21 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.365,
LW 0.334, SP
0.303, PIR
0.261; SM:
SP0.966,
PIR0.956; LFQ 1.0, LFX 49Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.9dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
89.0 |
0.5 |
2.98 |
| 3 |
187.0 |
0.48 |
-1.93 |
| 3 |
547.0 |
2.7 |
2.01 |
| 3 |
965.0 |
0.87 |
0.04 |
| 3 |
1491.0 |
2.08 |
-0.39 |
| 3 |
1948.0 |
2.82 |
0.69 |
| 3 |
2909.0 |
2.9 |
2.36 |
| 3 |
6069.0 |
1.87 |
0.18 |
| 6 |
9372.0 |
0.54 |
2.81 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -5.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
327.0 |
9.0 |
-0.6 |
| 3 |
452.0 |
4.0 |
1.0 |
| 3 |
546.0 |
5.0 |
2.5 |
| 3 |
667.0 |
11.0 |
1.2 |
| 3 |
761.0 |
11.0 |
0.7 |
| 3 |
860.0 |
7.0 |
0.7 |
| 3 |
1142.0 |
3.0 |
1.6 |
| 3 |
1640.0 |
5.4 |
1.4 |
| 3 |
1970.0 |
7.0 |
2.3 |
| 3 |
2220.0 |
12.5 |
2.1 |
| 3 |
3050.0 |
2.3 |
4.5 |
| 3 |
3380.0 |
5.0 |
-0.5 |
| 3 |
4280.0 |
4.5 |
1.1 |
| 3 |
5730.0 |
4.7 |
2.1 |
| 3 |
7920.0 |
7.0 |
2.5 |
| 3 |
8750.0 |
7.0 |
-1.0 |
| 3 |
9820.0 |
5.5 |
2.5 |
| 3 |
11900.0 |
4.0 |
2.6 |
| 3 |
14400.0 |
2.0 |
4.4 |
| 3 |
16000.0 |
6.5 |
2.7 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
-0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
-0.25 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.0 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
0.25 |
| 3 |
6300.0 |
2.14 |
0.25 |
| 3 |
10000.0 |
2.14 |
0.25 |
| 3 |
16000.0 |
2.14 |
0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.9dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
-0.25 |
| 3 |
125.0 |
4.32 |
-0.25 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.25 |
| 3 |
630.0 |
4.32 |
0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.25 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.5 |
| 3 |
3150.0 |
4.32 |
0.5 |
| 3 |
4000.0 |
4.32 |
0.25 |
| 3 |
5000.0 |
4.32 |
0.25 |
| 3 |
6300.0 |
4.32 |
0.25 |
| 3 |
8000.0 |
4.32 |
0.25 |
| 3 |
10000.0 |
4.32 |
0.5 |
| 3 |
12000.0 |
4.32 |
0.75 |
| 3 |
16000.0 |
4.32 |
0.75 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
