What we know about the measurement:

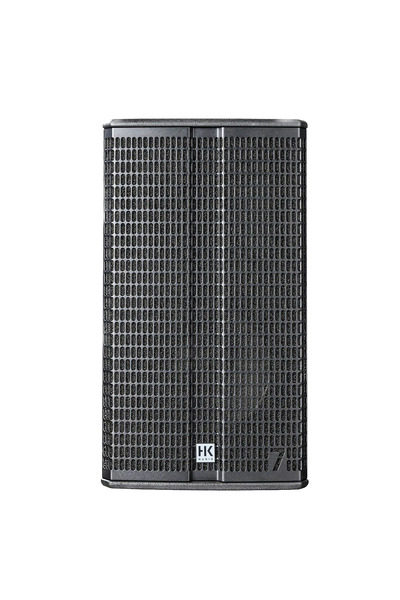

HK Audio LINEAR 7 112 XA is an active liveportable that cost around 1450 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is HK Audio.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 90.0Hz (resp. 82.5Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.14 and would be 5.4 with a perfect subwoofer.
      • Details: NBD: ON 0.47, LW 0.535, SP 0.763, PIR 0.648; SM: SP0.645, PIR0.357; LFQ 2.056, LFX 82Hz
    • Tonality (Preference) Score is 4.04 with an EQ and would be 7.23 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.384, LW 0.425, SP 0.611, PIR 0.496; SM: SP0.919, PIR0.861; LFQ 2.056, LFX 79Hz
  • Vendor specifications:
    • Dispersion: 80° horizontal and 60° vertical.
    • SPL
      • continuous: 128 dB
      • peak: 131 dB
    • Size
      • Width 370mm
      • Height 670mm
      • Depth 310 mm)
    • Weight 21 kg
HK Audio LINEAR 7 112 XA
AutomaticEQ (IIR)
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 121.0 2.96 -2.33
3 289.0 1.76 1.02
3 1244.0 1.41 0.74
3 2094.0 1.82 2.87
3 2245.0 2.98 -5.21
3 3525.0 2.98 -4.02
3 11085.0 0.77 -4.63
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

HK Audio LINEAR 7 112 XA filters_auto_eq

AutomaticEQ

HK Audio LINEAR 7 112 XA filters_eq_full

Target v.s. EQ

HK Audio LINEAR 7 112 XA
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 -0.5
3 4000.0 2.14 -0.25
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

HK Audio LINEAR 7 112 XA
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 -0.25
3 4000.0 4.32 -0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.5
3 10000.0 4.32 -0.25
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
