What we know about the measurement:

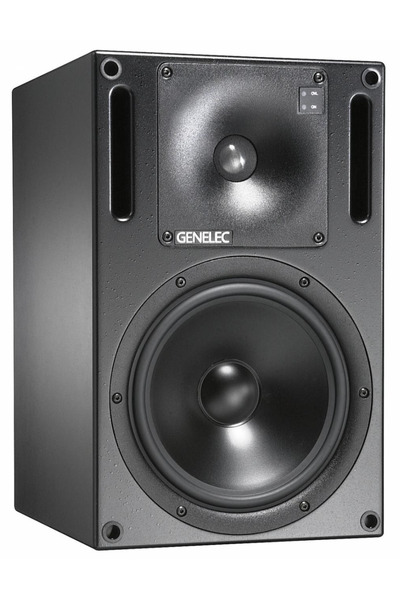

Genelec 1031A is an active bookshelves

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 218.0Hz (resp. 140.0Hz).
  • Reference level is normalised to 0.8dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.62 and would be 6.23 with a perfect subwoofer.
      • Details: NBD: ON 0.35, LW 0.289, SP 0.33, PIR 0.292; SM: SP0.118, PIR0.127; LFQ 1.989, LFX 170Hz
  • Link to original Review: audiorekr review. Links to other reviews: asr review .
  • Note: Data is valid above ~200Hz..
  • Vendor specifications:
    • SPL
      • max: 110 dB
      • peak: 120 dB
    • Size
      • Width 250mm
      • Height 395mm
      • Depth 290mm
    • Weight 12.7kg
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
