What we know about the measurement:
- Quality of the measurement data is
medium.
-

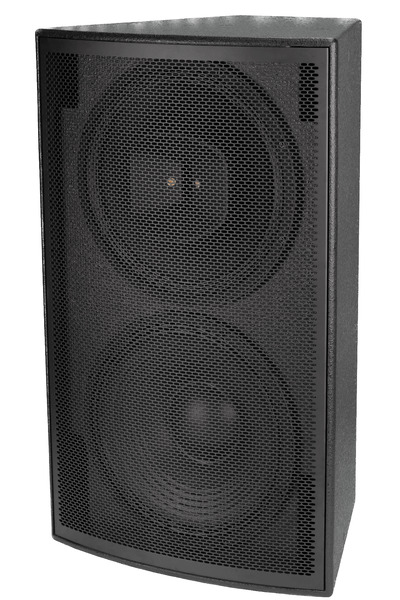

Origin of the data is Fulcrum Acoustic.
-
Format of the data is
a GLL file
.
-
Sensitivity:
-
Sensitivity: 108.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
-
Sensitivity: 88.1dB computed at the measurement distance (10.0m) over the same frequency range.
-
-3dB (resp. -6db) point v.s. reference is at 48.7Hz (resp. 43.7Hz).
-
Reference level is normalised to -0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 5.6dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-50.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Note: The tonality (Preference) score
does not make sense for toursound speakers. Don't give too much credits
to the value.
- Tonality (Preference) Score is 2.74
and would be 4.8 with a
perfect subwoofer.
- Details:
NBD: ON 0.868,
LW 0.697, SP
0.744, PIR
0.695; SM:
SP0.65,
PIR0.588; LFQ
2.517, LFX 43Hz
- Tonality (Preference) Score is 4.09
with an EQ and would be 5.98 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.681,
LW 0.575, SP
0.635, PIR
0.572; SM:
SP0.802,
PIR0.739; LFQ 2.517, LFX 40Hz
-
Note: Relatively high smoothing; Pattern is 120x60.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
44.0 |
1.72 |
2.91 |
| PK |
130.0 |
0.8 |
-1.26 |
| PK |
279.0 |
3.0 |
-0.73 |
| PK |
4051.0 |
1.08 |
2.97 |
| PK |
4495.0 |
2.99 |
-8.81 |
| PK |
8397.0 |
2.99 |
-2.57 |
| PK |
11476.0 |
3.0 |
-4.92 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.6dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.5 |
| PK |
40.0 |
2.14 |
0.5 |
| PK |
63.0 |
2.14 |
0.25 |
| PK |
100.0 |
2.14 |
0.0 |
| PK |
160.0 |
2.14 |
0.0 |
| PK |
250.0 |
2.14 |
0.0 |
| PK |
400.0 |
2.14 |
0.25 |
| PK |
630.0 |
2.14 |
0.25 |
| PK |
1000.0 |
2.14 |
0.25 |
| PK |
1600.0 |
2.14 |
0.25 |
| PK |
2500.0 |
2.14 |
0.25 |
| PK |
4000.0 |
2.14 |
0.0 |
| PK |
6300.0 |
2.14 |
-0.25 |
| PK |
10000.0 |
2.14 |
0.0 |
| PK |
16000.0 |
2.14 |
0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.5 |
| PK |
31.0 |
4.32 |
0.5 |
| PK |
40.0 |
4.32 |
0.5 |
| PK |
50.0 |
4.32 |
0.5 |
| PK |
63.0 |
4.32 |
0.25 |
| PK |
80.0 |
4.32 |
0.0 |
| PK |
100.0 |
4.32 |
0.0 |
| PK |
125.0 |
4.32 |
-0.25 |
| PK |
160.0 |
4.32 |
0.0 |
| PK |
200.0 |
4.32 |
0.0 |
| PK |
250.0 |
4.32 |
0.0 |
| PK |
315.0 |
4.32 |
0.25 |
| PK |
400.0 |
4.32 |
0.25 |
| PK |
500.0 |
4.32 |
0.25 |
| PK |
630.0 |
4.32 |
0.25 |
| PK |
800.0 |
4.32 |
0.25 |
| PK |
1000.0 |
4.32 |
0.25 |
| PK |
1250.0 |
4.32 |
0.25 |
| PK |
1600.0 |
4.32 |
0.25 |
| PK |
2000.0 |
4.32 |
0.25 |
| PK |
2500.0 |
4.32 |
0.25 |
| PK |
3150.0 |
4.32 |
0.5 |
| PK |
4000.0 |
4.32 |
0.0 |
| PK |
5000.0 |
4.32 |
0.25 |
| PK |
6300.0 |
4.32 |
-0.25 |
| PK |
8000.0 |
4.32 |
-0.25 |
| PK |
10000.0 |
4.32 |
0.0 |
| PK |
12000.0 |
4.32 |
0.0 |
| PK |
16000.0 |
4.32 |
0.5 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
