What we know about the measurement:

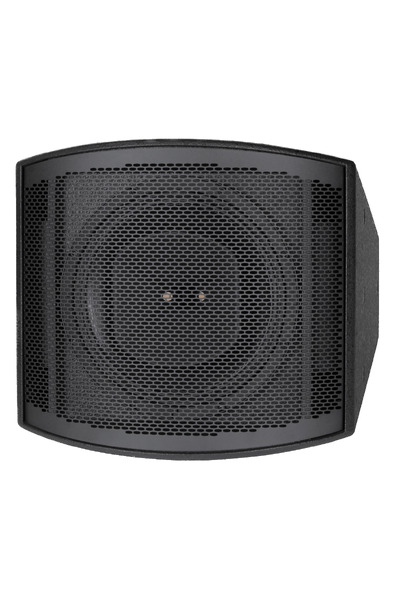

Fulcrum Acoustic CCX1577 is a passive toursound

  • Quality of the measurement data is medium.
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 105.0dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 85.0dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 85.0Hz (resp. 73.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 4.03 and would be 7.28 with a perfect subwoofer.
      • Details: NBD: ON 0.581, LW 0.396, SP 0.39, PIR 0.368; SM: SP0.929, PIR0.927; LFQ 3.109, LFX 82Hz
    • Tonality (Preference) Score is 5.12 with an EQ and would be 8.15 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.363, LW 0.235, SP 0.336, PIR 0.251; SM: SP0.913, PIR0.917; LFQ 3.109, LFX 73Hz
  • Note: Relatively high smoothing; Pattern is 75x75.
Fulcrum Acoustic CCX1577
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
3 74.0 1.56 2.99
3 121.0 2.12 -1.99
3 252.0 2.82 -1.09
3 382.0 0.26 0.57
3 1429.0 2.98 -1.4
3 9001.0 2.95 2.98
3 10707.0 2.18 -2.18
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Fulcrum Acoustic CCX1577 filters_auto_eq

AutomaticEQ

Fulcrum Acoustic CCX1577 filters_eq_full

Target v.s. EQ

Fulcrum Acoustic CCX1577
Graphic EQ 15 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 0.25
3 160.0 2.14 0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.5
3 16000.0 2.14 0.75
Download

These EQ is designed for a 15 bands graphical EQ.

Fulcrum Acoustic CCX1577
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.25
3 100.0 4.32 0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.5
3 6300.0 4.32 0.25
3 8000.0 4.32 0.5
3 10000.0 4.32 0.5
3 12000.0 4.32 0.25
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Fulcrum Acoustic CCX1577: comparison between EQs
Fulcrum Acoustic CCX1577

Comparison betweens various EQs
