What we know about the measurement:

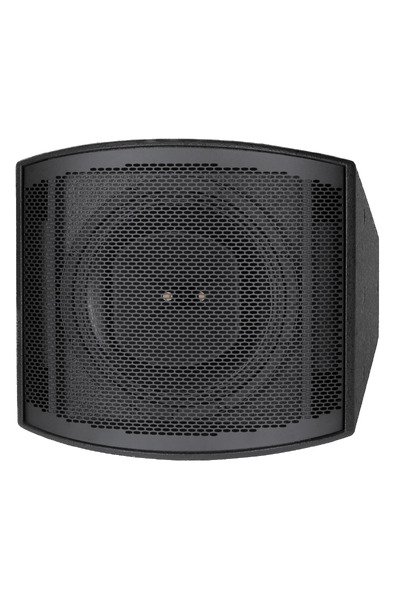

Fulcrum Acoustic CCX1526 is a passive toursound

  • Quality of the measurement data is medium.
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 104.7dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 84.7dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 85.0Hz (resp. 73.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 2.83 and would be 6.14 with a perfect subwoofer.
      • Details: NBD: ON 0.642, LW 0.533, SP 0.489, PIR 0.486; SM: SP0.751, PIR0.653; LFQ 3.307, LFX 84Hz
    • Tonality (Preference) Score is 4.46 with an EQ and would be 7.54 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.481, LW 0.381, SP 0.394, PIR 0.349; SM: SP0.902, PIR0.906; LFQ 3.307, LFX 75Hz
  • Note: Relatively high smoothing; Pattern is 120x60.
Fulcrum Acoustic CCX1526
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
5 87.0 0.84 2.98
3 565.0 2.85 0.58
3 1103.0 2.93 1.04
3 1822.0 2.72 2.46
3 2545.0 2.96 -2.87
3 3008.0 2.94 2.05
3 4345.0 2.98 -2.41
3 10361.0 2.88 2.48
3 12662.0 1.09 -2.91
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Fulcrum Acoustic CCX1526 filters_auto_eq

AutomaticEQ

Fulcrum Acoustic CCX1526 filters_eq_full

Target v.s. EQ

Fulcrum Acoustic CCX1526
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.5
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.0
3 4000.0 2.14 -0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Fulcrum Acoustic CCX1526
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.5
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.5
3 2000.0 4.32 0.25
3 2500.0 4.32 0.0
3 3150.0 4.32 0.25
3 4000.0 4.32 -0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 0.0
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Fulcrum Acoustic CCX1526: comparison between EQs
Fulcrum Acoustic CCX1526

Comparison betweens various EQs

Fulcrum Acoustic CCX1526

Improvements made by EQ
