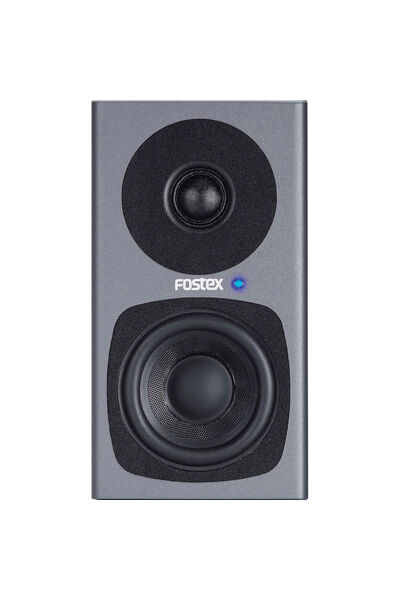

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
-3dB (resp. -6db) point v.s. reference is at 108.4Hz (resp. 90.8Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.9dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-80.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 80.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.2
and would be 6.64 with a
perfect subwoofer.
- Details:
NBD: ON 0.522,
LW 0.393, SP
0.425, PIR
0.361; SM:
SP0.72,
PIR0.578; LFQ
0.171, LFX 90Hz
- Tonality (Preference) Score is 5.33
with an EQ and would be 8.44 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.366,
LW 0.215, SP
0.271, PIR
0.17; SM:
SP0.928,
PIR0.939; LFQ 0.171, LFX 76Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.2dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
92.0 |
2.13 |
3.0 |
| 3 |
109.0 |
0.61 |
2.99 |
| 3 |
166.0 |
0.96 |
-4.17 |
| 3 |
2094.0 |
2.28 |
2.98 |
| 3 |
2765.0 |
2.86 |
-0.51 |
| 3 |
3912.0 |
0.74 |
-2.27 |
| 3 |
15685.0 |
1.11 |
2.98 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.9dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
410.0 |
4.0 |
0.4 |
| 3 |
515.0 |
4.0 |
0.6 |
| 3 |
748.0 |
11.0 |
-0.2 |
| 3 |
962.0 |
13.0 |
-0.5 |
| 3 |
1130.0 |
7.0 |
0.6 |
| 3 |
1325.0 |
12.0 |
-0.7 |
| 3 |
1587.0 |
5.0 |
-11.1 |
| 3 |
1598.0 |
4.091 |
12.2 |
| 3 |
1940.0 |
18.0 |
0.7 |
| 3 |
1964.0 |
4.512 |
0.3 |
| 3 |
2168.0 |
5.0 |
1.2 |
| 3 |
2210.0 |
15.0 |
0.6 |
| 3 |
3115.0 |
16.0 |
-0.3 |
| 3 |
3730.0 |
10.0 |
0.4 |
| 3 |
4150.0 |
1.0 |
-2.3 |
| 3 |
5850.0 |
4.0 |
-0.4 |
| 3 |
7420.0 |
10.0 |
0.5 |
| 3 |
8480.0 |
6.0 |
-1.0 |
| 3 |
10100.0 |
3.5 |
0.7 |
| 3 |
15200.0 |
1.9 |
3.0 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.5dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.0 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
-0.25 |
| 3 |
10000.0 |
2.14 |
0.0 |
| 3 |
16000.0 |
2.14 |
0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
-0.25 |
| 3 |
630.0 |
4.32 |
-0.25 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.5 |
| 3 |
4000.0 |
4.32 |
-0.5 |
| 3 |
5000.0 |
4.32 |
-0.5 |
| 3 |
6300.0 |
4.32 |
-0.25 |
| 3 |
8000.0 |
4.32 |
-0.25 |
| 3 |
10000.0 |
4.32 |
0.0 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
