What we know about the measurement:

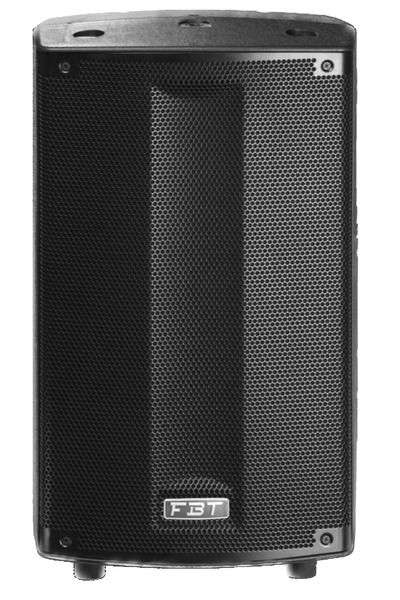

FBT Promaxx 110A is an active liveportable that cost around 1200 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is FBT.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 90.0Hz (resp. 80.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.26 and would be 6.18 with a perfect subwoofer.
      • Details: NBD: ON 0.493, LW 0.494, SP 0.685, PIR 0.611; SM: SP0.824, PIR0.672; LFQ 1.798, LFX 68Hz
    • Tonality (Preference) Score is 5.48 with an EQ and would be 8.13 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.292, LW 0.244, SP 0.413, PIR 0.317; SM: SP0.942, PIR0.918; LFQ 1.715, LFX 60Hz
FBT Promaxx 110A
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
6 90.0 1.18 -3.0
3 691.0 1.36 2.15
3 903.0 2.97 2.88
3 1141.0 2.88 -2.21
3 1594.0 2.78 2.96
3 2082.0 2.77 -2.98
3 3110.0 1.03 2.9
3 6276.0 0.74 -1.47
5 14965.0 0.42 1.93
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

FBT Promaxx 110A filters_auto_eq

AutomaticEQ

FBT Promaxx 110A filters_eq_full

Target v.s. EQ

FBT Promaxx 110A
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 -0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.5
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

FBT Promaxx 110A
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 -0.25
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.5
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.75
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.75
3 4000.0 4.32 0.5
3 5000.0 4.32 0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

FBT Promaxx 110A: comparison between EQs
FBT Promaxx 110A

Comparison betweens various EQs

FBT Promaxx 110A

Improvements made by EQ
