What we know about the measurement:

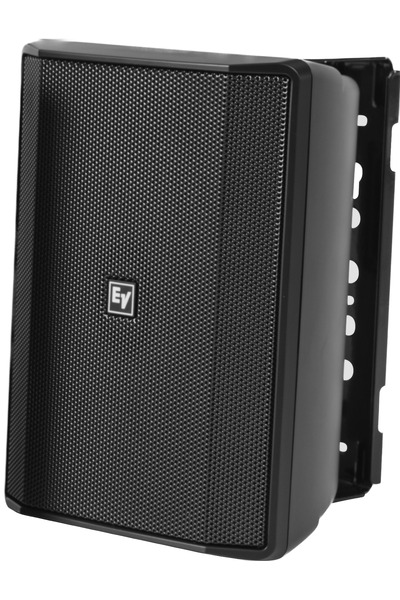

EV EVID-S5.2X is a passive bookshelves that cost around 420 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is EV.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 82.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 62.9dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 150.0Hz (resp. 100.0Hz).
  • Reference level is normalised to 0.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.13 and would be 4.74 with a perfect subwoofer.
      • Details: NBD: ON 0.584, LW 0.547, SP 0.634, PIR 0.563; SM: SP0.406, PIR0.086; LFQ 0.686, LFX 100Hz
    • Tonality (Preference) Score is 4.22 with an EQ and would be 7.19 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.473, LW 0.447, SP 0.539, PIR 0.469; SM: SP0.905, PIR0.902; LFQ 0.481, LFX 70Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 90° vertical.
    • Sensitivity 90 dB
    • Impedance 6 Ohm
    • SPL
      • continuous: 109 dB
      • peak: 115 dB
    • Size
      • Width 180mm
      • Height 255mm
      • Depth 151mm
    • Weight 2.7kg
EV EVID-S5.2X
AutomaticEQ (IIR)
Set preamp gain to: -5.3dB.
Type Freq Q Gain
PK 80.0 1.32 2.99
PK 155.0 0.25 2.58
PK 739.0 0.87 0.71
PK 765.0 2.96 -2.81
PK 2406.0 2.97 -1.78
PK 4051.0 1.75 0.38
PK 8397.0 0.5 -5.39
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

EV EVID-S5.2X filters_auto_eq

AutomaticEQ

EV EVID-S5.2X filters_eq_full

Target v.s. EQ

EV EVID-S5.2X
Graphic EQ 15 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.25
PK 100.0 2.14 0.25
PK 160.0 2.14 0.25
PK 250.0 2.14 0.25
PK 400.0 2.14 0.25
PK 630.0 2.14 -0.25
PK 1000.0 2.14 0.25
PK 1600.0 2.14 -0.25
PK 2500.0 2.14 -0.5
PK 4000.0 2.14 -0.5
PK 6300.0 2.14 -0.75
PK 10000.0 2.14 -0.75
PK 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

EV EVID-S5.2X
Graphic EQ 31 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.25
PK 31.0 4.32 0.25
PK 40.0 4.32 0.25
PK 50.0 4.32 0.25
PK 63.0 4.32 0.25
PK 80.0 4.32 0.25
PK 100.0 4.32 0.25
PK 125.0 4.32 0.25
PK 160.0 4.32 0.25
PK 200.0 4.32 0.25
PK 250.0 4.32 0.25
PK 315.0 4.32 0.25
PK 400.0 4.32 0.25
PK 500.0 4.32 0.0
PK 630.0 4.32 -0.25
PK 800.0 4.32 -0.25
PK 1000.0 4.32 0.25
PK 1250.0 4.32 -0.25
PK 1600.0 4.32 -0.25
PK 2000.0 4.32 -0.25
PK 2500.0 4.32 -0.5
PK 3150.0 4.32 -0.25
PK 4000.0 4.32 -0.25
PK 5000.0 4.32 -0.5
PK 6300.0 4.32 -0.5
PK 8000.0 4.32 -0.5
PK 10000.0 4.32 -0.75
PK 12000.0 4.32 -0.5
PK 16000.0 4.32 -0.25
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

EV EVID-S5.2X: comparison between EQs
EV EVID-S5.2X

Comparison betweens various EQs

EV EVID-S5.2X

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
