- Quality of the measurement data is low.
- Origin of the data is Misc.
- Format of the data is a set of 36 horizontal and 36 vertical measurements .
-
Sensitivity:
- Company: 92 dB
- Measured: 76.4 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 72.3Hz (resp. 63.5Hz).
- Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.1dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.91
and would be 6.62 with a
perfect subwoofer.
- Details: NBD: ON 0.538, LW 0.498, SP 0.463, PIR 0.449; SM: SP0.853, PIR0.699; LFQ 1.868, LFX 61Hz
- Tonality (Preference) Score is 5.74
with an EQ and would be 8.23 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.338, LW 0.309, SP 0.297, PIR 0.264; SM: SP0.956, PIR0.941; LFQ 1.868, LFX 54Hz
- Tonality (Preference) Score is 3.91
and would be 6.62 with a
perfect subwoofer.
- Link to original Review: asr review. .

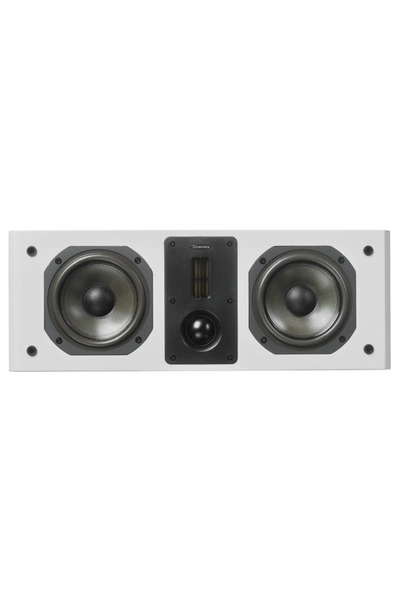

Dynavoice Definition DC-5 is a passive center that cost around 225 USD
Vendor specifications
- Impedance 8 Ohm
- Size
- Width 185mm
- Height 500mm
- Depth 300mm
- Weight 9.8kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.2dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 58.0 | 1.04 | 3.0 |
| PK | 121.0 | 1.52 | -4.43 |
| PK | 211.0 | 0.74 | -1.25 |
| PK | 504.0 | 2.97 | 2.84 |
| PK | 976.0 | 2.18 | -2.89 |
| PK | 1046.0 | 3.0 | 2.76 |
| PK | 12736.0 | 0.48 | -2.67 |
| Download | |||
