What we know about the measurement:

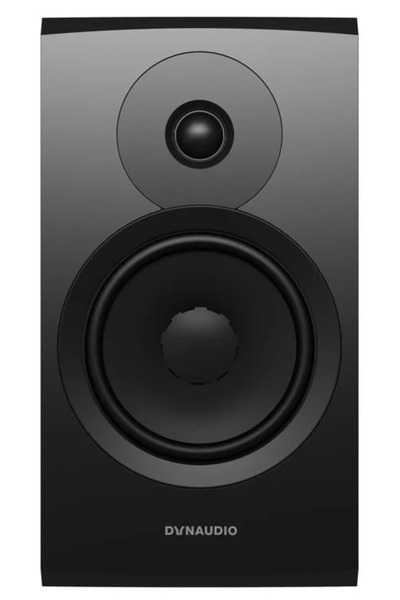

Dynaudio Emit 20 is a passive bookshelves that cost around 800 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 83.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 56.4Hz (resp. 41.0Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.89 and would be 5.59 with a perfect subwoofer.
      • Details: NBD: ON 0.662, LW 0.57, SP 0.435, PIR 0.488; SM: SP0.838, PIR0.438; LFQ 0.635, LFX 35Hz
    • Tonality (Preference) Score is 6.17 with an EQ and would be 7.62 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.447, LW 0.399, SP 0.43, PIR 0.35; SM: SP0.945, PIR0.908; LFQ 0.744, LFX 31Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 6 Ohm
    • Size
      • Width 205mm
      • Height 370mm
      • Depth 211mm
    • Weight 10.32kg
Dynaudio Emit 20
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
PK 36.0 1.23 2.83
PK 820.0 2.95 2.81
PK 1083.0 1.66 -2.39
PK 2765.0 1.98 2.98
PK 3650.0 2.33 -4.08
PK 4989.0 2.99 2.04
PK 14134.0 1.05 -5.65
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Dynaudio Emit 20 filters_auto_eq

AutomaticEQ

Dynaudio Emit 20 filters_eq_full

Target v.s. EQ

Dynaudio Emit 20
AutomaticEQ LW (IIR)
Set preamp gain to: -2.2dB.
Type Freq Q Gain
PK 30.0 2.3 1.87
PK 56.0 2.45 2.16
PK 113.0 1.51 -0.76
PK 1202.0 2.57 -2.52
PK 3779.0 3.0 -5.5
PK 4654.0 0.47 3.0
PK 13652.0 0.85 -6.2
Download

These EQ optimise for a flat listening window and is a good start for near field listening like on your desk.

Dynaudio Emit 20: comparison between EQs
Dynaudio Emit 20

Comparison betweens various EQs

Dynaudio Emit 20

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
