What we know about the measurement:

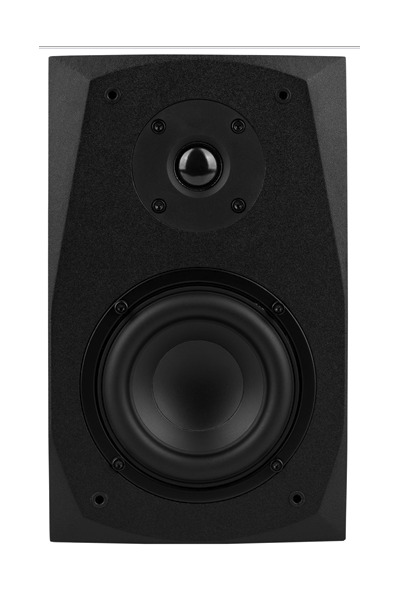

Dayton Audio MK402X is a passive bookshelves that cost around 70 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 79.4dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 52.7Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.69 and would be 6.1 with a perfect subwoofer.
      • Details: NBD: ON 0.555, LW 0.496, SP 0.351, PIR 0.376; SM: SP0.691, PIR0.4; LFQ 0.244, LFX 52Hz
    • Tonality (Preference) Score is 5.87 with an EQ and would be 8.01 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.415, LW 0.358, SP 0.298, PIR 0.252; SM: SP0.94, PIR0.913; LFQ 0.23, LFX 45Hz
  • Link to Original review.
Dayton Audio MK402X
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
5 89.0 1.28 2.93
3 117.0 1.75 -1.63
3 187.0 1.85 -1.44
3 391.0 2.94 2.21
3 478.0 1.78 -1.85
3 714.0 2.37 1.85
3 1762.0 2.3 1.6
3 6489.0 1.05 -2.38
3 12662.0 0.82 -2.18
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Dayton Audio MK402X filters_auto_eq

AutomaticEQ

Dayton Audio MK402X filters_eq_full

Target v.s. EQ

Dayton Audio MK402X
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 0.0
3 160.0 2.14 -0.25
3 250.0 2.14 -0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.0
3 2500.0 2.14 -0.25
3 4000.0 2.14 -0.5
3 6300.0 2.14 -0.5
3 10000.0 2.14 -0.5
3 16000.0 2.14 -0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Dayton Audio MK402X
Graphic EQ 31 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 -0.25
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 -0.25
3 315.0 4.32 -0.25
3 400.0 4.32 0.0
3 500.0 4.32 -0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 -0.25
3 1250.0 4.32 -0.25
3 1600.0 4.32 0.0
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 -0.25
3 4000.0 4.32 -0.5
3 5000.0 4.32 -0.5
3 6300.0 4.32 -0.5
3 8000.0 4.32 -0.75
3 10000.0 4.32 -0.5
3 12000.0 4.32 -0.5
3 16000.0 4.32 -0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Dayton Audio MK402X: comparison between EQs
Dayton Audio MK402X

Comparison betweens various EQs
