We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

Danley SM-80F is a passive toursound

  • Quality of the measurement data is low.
  • Origin of the data is Danley.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 22.4Hz (resp. 22.4Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 10.5dB over the same frequency range.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is -2.31 and would be -1.5 with a perfect subwoofer.
      • Details: NBD: ON 1.668, LW 1.836, SP 1.948, PIR 1.874; SM: SP0.368, PIR0.249; LFQ 2.697, LFX 22Hz
    • Tonality (Preference) Score is -2.25 with an EQ and would be -1.44 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 1.735, LW 1.871, SP 1.967, PIR 1.905; SM: SP0.493, PIR0.387; LFQ 2.697, LFX 22Hz

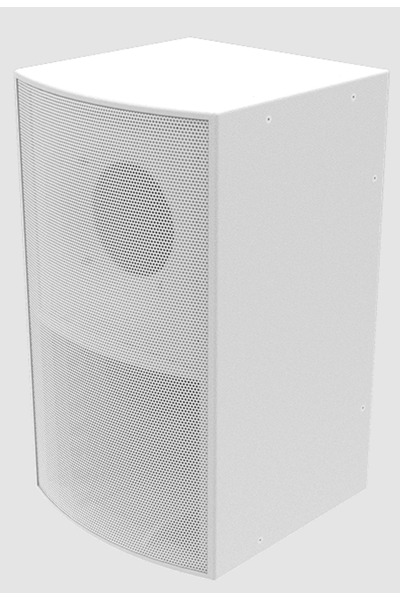

Danley SM-80F
AutomaticEQ (IIR)
Set preamp gain to: -1.8dB.
Type Freq Q Gain
PK 134.0 2.08 -4.73
PK 190.0 2.99 3.0
PK 382.0 2.99 2.29
PK 522.0 2.99 -2.11
PK 1586.0 1.83 2.8
PK 1887.0 2.97 -4.17
PK 8397.0 1.07 -5.29
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
