What we know about the measurement:

Danley SH-62 is a passive toursound

  • Quality of the measurement data is medium.
  • Origin of the data is Danley.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 51.5Hz (resp. 48.7Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.2dB over the same frequency range.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 1.58 and would be 3.89 with a perfect subwoofer.
      • Details: NBD: ON 0.922, LW 0.906, SP 0.952, PIR 0.923; SM: SP0.717, PIR0.549; LFQ 5.472, LFX 49Hz
    • Tonality (Preference) Score is 3.62 with an EQ and would be 5.89 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.646, LW 0.642, SP 0.678, PIR 0.643; SM: SP0.868, PIR0.75; LFQ 5.472, LFX 48Hz
  • Vendor specifications:
    • Sensitivity 105 dB
    • Impedance 4 Ohm
    • SPL
      • continuous: 138 dB
      • peak: 144 dB
    • Size
      • Width 914mm
      • Height 471mm
      • Depth 762mm
    • Weight 106.6kg

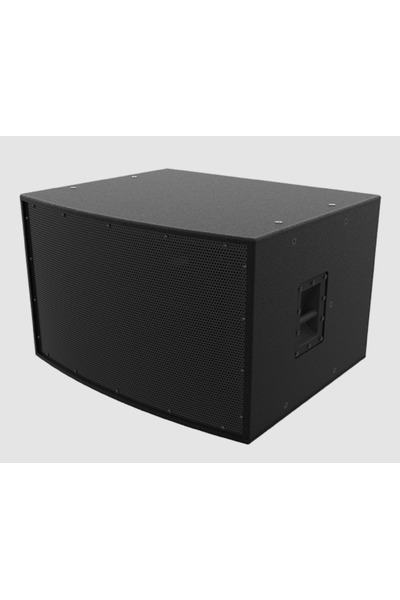

Danley SH-62
AutomaticEQ (IIR)
Set preamp gain to: -2.6dB.
Type Freq Q Gain
PK 190.0 3.0 -3.0
PK 279.0 3.0 3.0
PK 395.0 1.8 -2.78
PK 1083.0 3.0 3.0
PK 2245.0 2.0 -1.99
PK 6585.0 0.81 -5.32
PK 16239.0 0.36 3.0
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
