What we know about the measurement:

Danley J1-94 is a passive toursound

  • Quality of the measurement data is medium.
  • Origin of the data is Danley.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 45.0Hz (resp. 41.2Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.7dB over the same frequency range.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 1.14 and would be 3.16 with a perfect subwoofer.
      • Details: NBD: ON 0.753, LW 0.747, SP 0.924, PIR 0.888; SM: SP0.157, PIR0.003; LFQ 3.867, LFX 42Hz
    • Tonality (Preference) Score is 3.94 with an EQ and would be 5.78 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.517, LW 0.621, SP 0.821, PIR 0.715; SM: SP0.79, PIR0.659; LFQ 3.867, LFX 38Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 40° vertical.
    • Sensitivity 100 dB
    • Impedance 4 Ohm
    • SPL
      • continuous: 148 dB
      • peak: 154 dB
    • Size
      • Width 1140mm
      • Height 1520mm
      • Depth 760mm
    • Weight 326kg

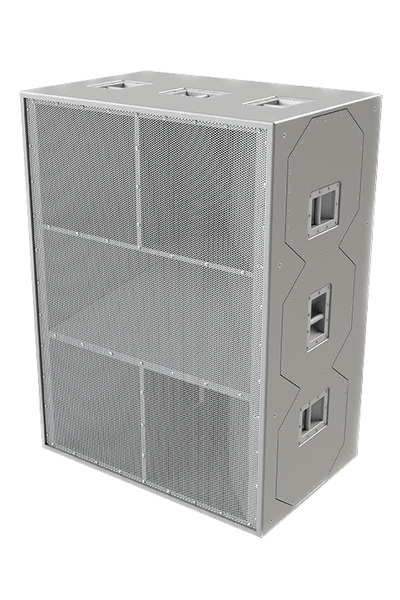

Danley J1-94
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
PK 109.0 2.99 -1.35
PK 184.0 1.66 3.0
PK 849.0 3.0 3.0
PK 1161.0 2.12 -3.82
PK 3405.0 2.0 -5.16
PK 5732.0 0.51 -0.81
PK 6818.0 1.48 -8.65
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
