What we know about the measurement:

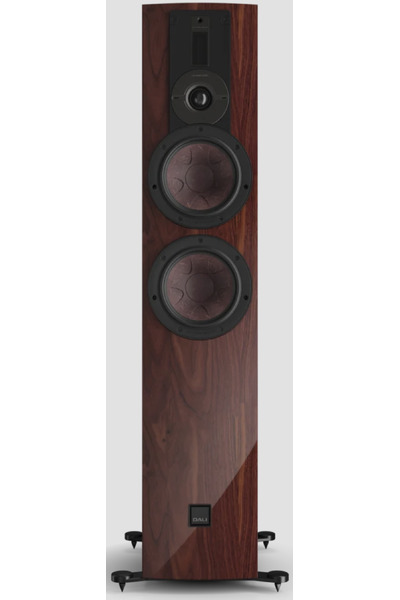

Dali Rubikore 6 is a passive floorstanders that cost around 8000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.3dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 45.4Hz (resp. 38.8Hz).
  • Reference level is normalised to 0.7dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.07 and would be 5.76 with a perfect subwoofer.
      • Details: NBD: ON 0.453, LW 0.354, SP 0.348, PIR 0.356; SM: SP0.618, PIR0.12; LFQ 0.816, LFX 35Hz
    • Tonality (Preference) Score is 6.7 with an EQ and would be 8.02 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.389, LW 0.287, SP 0.311, PIR 0.28; SM: SP0.962, PIR0.926; LFQ 0.892, LFX 29Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Note: This measurement is done at 0 degree with respect to the speaker. Dali recommend to listen at 30 degrees and that's howthe other measurement as been done..
  • Vendor specifications:
    • Sensitivity 88.5 dB
    • Impedance 4 Ohm
    • SPL
      • peak: 110 dB
    • Size
      • Width 200mm
      • Height 990mm
      • Depth 380mm
    • Weight 23.0kg
Dali Rubikore 6
AutomaticEQ (IIR)
Set preamp gain to: -2.3dB.
Type Freq Q Gain
PK 36.0 0.94 2.89
PK 69.0 1.27 -2.73
PK 332.0 0.63 1.09
PK 579.0 2.98 -1.51
PK 1642.0 1.12 2.97
PK 1700.0 2.99 -2.66
PK 8110.0 0.28 -4.15
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Dali Rubikore 6 filters_auto_eq

AutomaticEQ

Dali Rubikore 6 filters_eq_full
