What we know about the measurement:

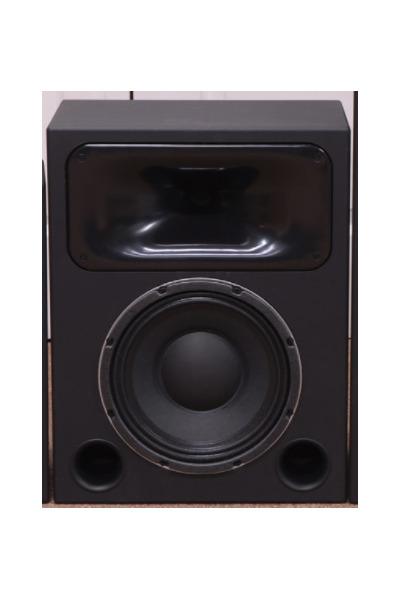

DIYSG HT-10 is a passive bookshelves that cost around 216 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 91.7dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 73.4Hz (resp. 59.1Hz).
  • Reference level is normalised to -0.5dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.73 and would be 7.28 with a perfect subwoofer.
      • Details: NBD: ON 0.424, LW 0.417, SP 0.433, PIR 0.386; SM: SP0.881, PIR0.782; LFQ 1.764, LFX 56Hz
    • Tonality (Preference) Score is 6.31 with an EQ and would be 8.56 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.214, LW 0.214, SP 0.331, PIR 0.245; SM: SP0.966, PIR0.927; LFQ 1.764, LFX 48Hz
  • Link to original Review: diysg review. Links to other reviews: diy review .
DIYSG HT-10
AutomaticEQ (IIR)
Set preamp gain to: -3.7dB.
Type Freq Q Gain
5 73.0 0.97 2.91
3 73.0 1.96 2.97
3 117.0 1.37 -2.65
3 221.0 2.34 2.35
3 511.0 2.09 -2.0
3 625.0 2.89 2.73
3 3008.0 2.36 2.7
3 7417.0 0.56 2.87
3 11454.0 1.29 -2.28
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

DIYSG HT-10 filters_auto_eq

AutomaticEQ

DIYSG HT-10 filters_eq_full

Target v.s. EQ

DIYSG HT-10
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.25
3 400.0 2.14 -0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.0
3 2500.0 2.14 0.5
3 4000.0 2.14 0.75
3 6300.0 2.14 0.5
3 10000.0 2.14 0.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

DIYSG HT-10
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.75
3 4000.0 4.32 0.5
3 5000.0 4.32 0.25
3 6300.0 4.32 0.5
3 8000.0 4.32 0.5
3 10000.0 4.32 0.0
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

DIYSG HT-10: comparison between EQs
