What we know about the measurement:

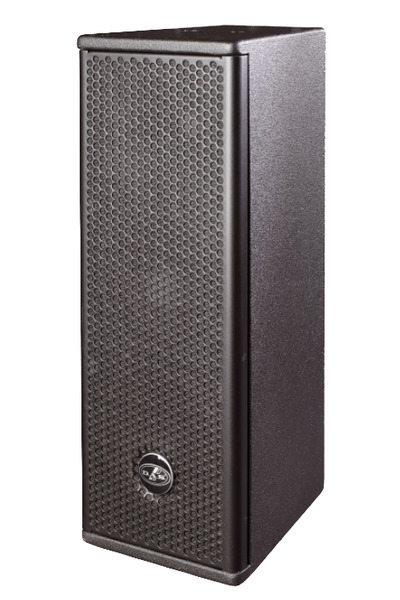

DAS Audio ARTEC 526A is an active liveportable that cost around 1100 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is DAS Audio.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 85.0Hz (resp. 80.0Hz).
  • Reference level is normalised to -0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.89 and would be 8.03 with a perfect subwoofer.
      • Details: NBD: ON 0.351, LW 0.33, SP 0.383, PIR 0.333; SM: SP0.974, PIR0.955; LFQ 1.076, LFX 77Hz
    • Tonality (Preference) Score is 6.04 with an EQ and would be 9.11 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.13, LW 0.123, SP 0.216, PIR 0.144; SM: SP0.97, PIR0.944; LFQ 1.076, LFX 75Hz
DAS Audio ARTEC 526A
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
3 77.0 2.99 2.22
3 197.0 3.0 -2.6
3 689.0 2.57 1.26
3 792.0 2.91 -2.23
3 2168.0 2.94 -0.88
3 6361.0 2.97 -2.32
3 10707.0 0.25 2.93
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

DAS Audio ARTEC 526A filters_auto_eq

AutomaticEQ

DAS Audio ARTEC 526A filters_eq_full

Target v.s. EQ

DAS Audio ARTEC 526A
Graphic EQ 15 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.25
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.75
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

DAS Audio ARTEC 526A
Graphic EQ 31 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.25
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.5
3 2000.0 4.32 0.25
3 2500.0 4.32 0.5
3 3150.0 4.32 0.5
3 4000.0 4.32 0.5
3 5000.0 4.32 0.5
3 6300.0 4.32 0.5
3 8000.0 4.32 0.75
3 10000.0 4.32 0.75
3 12000.0 4.32 0.75
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

DAS Audio ARTEC 526A: comparison between EQs
DAS Audio ARTEC 526A

Comparison betweens various EQs

DAS Audio ARTEC 526A

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
