What we know about the measurement:

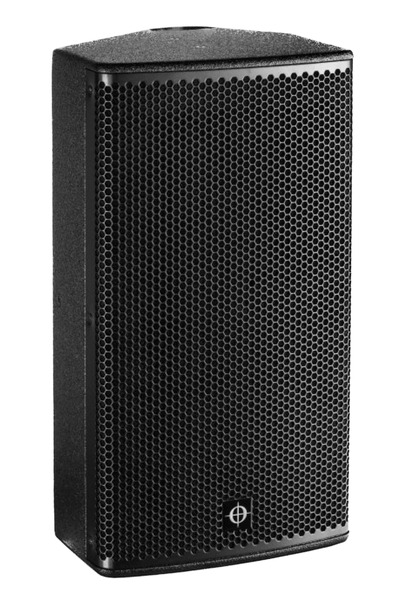

Coda Audio G715 is a passive liveportable

  • Quality of the measurement data is high.
  • Origin of the data is Coda Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 106.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 86.2dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 87.5Hz (resp. 71.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.56 and would be 5.58 with a perfect subwoofer.
      • Details: NBD: ON 0.477, LW 0.525, SP 0.711, PIR 0.595; SM: SP0.732, PIR0.377; LFQ 2.228, LFX 73Hz
    • Tonality (Preference) Score is 5.49 with an EQ and would be 7.61 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.311, LW 0.353, SP 0.536, PIR 0.414; SM: SP0.919, PIR0.836; LFQ 1.885, LFX 45Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 60° vertical.
    • Sensitivity 98 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 143 dB
    • Size
      • Width 420mm
      • Height 700mm
      • Depth 370 mm)
    • Weight 24.5 kg
Coda Audio G715
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
5 87.0 1.05 2.96
3 432.0 0.58 2.86
3 511.0 2.13 -2.47
3 1032.0 3.0 -2.2
3 1704.0 2.89 -0.52
3 2813.0 2.84 2.95
3 4345.0 2.93 1.9
3 11843.0 0.39 -2.82
5 15474.0 1.04 -0.17
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Coda Audio G715 filters_auto_eq

AutomaticEQ

Coda Audio G715 filters_eq_full

Target v.s. EQ

Coda Audio G715
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.25
3 160.0 2.14 0.25
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 -0.5
3 1600.0 2.14 0.0
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 -1.0
3 16000.0 2.14 -0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Coda Audio G715
Graphic EQ 31 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.75
3 31.0 4.32 0.75
3 40.0 4.32 0.75
3 50.0 4.32 0.75
3 63.0 4.32 0.75
3 80.0 4.32 0.75
3 100.0 4.32 0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 -0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 -0.5
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 0.0
3 8000.0 4.32 0.0
3 10000.0 4.32 -1.0
3 12000.0 4.32 -0.25
3 16000.0 4.32 -0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Coda Audio G715: comparison between EQs
Coda Audio G715

Comparison betweens various EQs

Coda Audio G715

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
