What we know about the measurement:

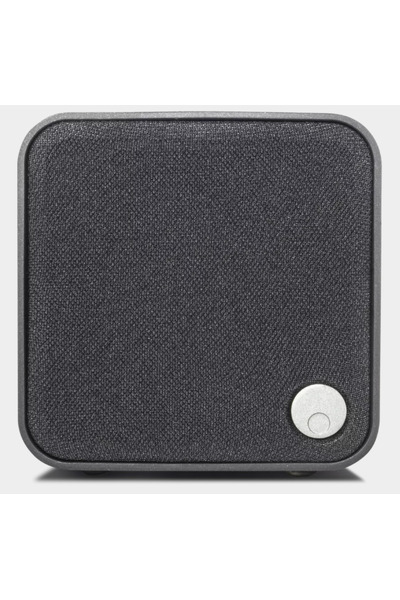

Cambridge Audio Minx MIN12 is a passive bookshelves that cost around 70 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 169.5Hz (resp. 144.6Hz).
  • Reference level is normalised to 0.8dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.2dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.26 and would be 4.7 with a perfect subwoofer.
      • Details: NBD: ON 0.627, LW 0.632, SP 0.669, PIR 0.638; SM: SP0.0, PIR0.212; LFQ 0.307, LFX 155Hz
    • Tonality (Preference) Score is 2.44 with an EQ and would be 6.48 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.501, LW 0.493, SP 0.599, PIR 0.526; SM: SP0.797, PIR0.699; LFQ 0.249, LFX 125Hz
  • Link to original Review: akr review. .
  • Note: Data is valid above 500Hz; On Axis is valid below 500Hz..
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 8 Ohm
    • Size
      • Width 78mm
      • Height 78mm
      • Depth 85mm
    • Weight 0.43kg
Cambridge Audio Minx MIN12
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 155.0 0.25 2.93
PK 487.0 1.05 -1.52
PK 560.0 0.57 1.03
PK 1532.0 2.77 2.22
PK 2406.0 1.07 -2.28
PK 7834.0 1.5 -6.87
PK 14134.0 1.01 -6.09
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
