What we know about the measurement:

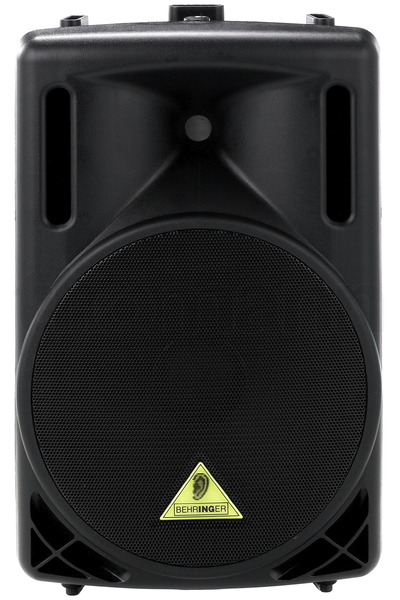

Behringer Eurolive B212XL is a passive liveportable that cost around 135 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 91.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 95.2Hz (resp. 85.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 8.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -1.14 and would be 2.16 with a perfect subwoofer.
      • Details: NBD: ON 1.168, LW 1.133, SP 1.071, PIR 1.075; SM: SP0.582, PIR0.262; LFQ 2.057, LFX 84Hz
    • Tonality (Preference) Score is 2.61 with an EQ and would be 5.68 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.755, LW 0.699, SP 0.63, PIR 0.636; SM: SP0.829, PIR0.767; LFQ 2.057, LFX 74Hz
  • Link to Original review.
  • Vendor specifications:
    • Dispersion: 90° horizontal and 60° vertical.
    • Sensitivity 95 dB
    • Impedance 8 Ohm
    • Size
      • Width 345mm
      • Height 550mm
      • Depth 270mm
    • Weight 10.9kg
Behringer Eurolive B212XL
AutomaticEQ (IIR)
Set preamp gain to: -4.7dB.
Type Freq Q Gain
PK 126.0 2.98 -3.0
PK 3231.0 2.92 2.49
PK 556.0 2.94 3.0
PK 183.0 0.26 2.94
PK 11111.0 0.59 -3.3
PK 1124.0 3.0 -4.59
PK 2165.0 2.94 -4.5
PK 4678.0 2.34 -4.0
PK 10214.0 2.95 -3.39
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Behringer Eurolive B212XL filters_auto_eq

AutomaticEQ

Behringer Eurolive B212XL filters_eq_full

Target v.s. EQ

Behringer Eurolive B212XL
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.5
PK 100.0 2.14 0.25
PK 160.0 2.14 0.0
PK 250.0 2.14 0.25
PK 400.0 2.14 -0.25
PK 630.0 2.14 0.5
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.25
PK 2500.0 2.14 0.0
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.25
PK 10000.0 2.14 -0.75
PK 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Behringer Eurolive B212XL
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.5
PK 100.0 4.32 0.25
PK 125.0 4.32 -0.25
PK 160.0 4.32 0.0
PK 200.0 4.32 0.25
PK 250.0 4.32 0.25
PK 315.0 4.32 0.0
PK 400.0 4.32 -0.25
PK 500.0 4.32 0.25
PK 630.0 4.32 0.25
PK 800.0 4.32 0.25
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.25
PK 2000.0 4.32 -0.25
PK 2500.0 4.32 0.0
PK 3150.0 4.32 0.25
PK 4000.0 4.32 -0.25
PK 5000.0 4.32 -0.25
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 -0.75
PK 12000.0 4.32 -0.75
PK 16000.0 4.32 -0.25
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
