What we know about the measurement:

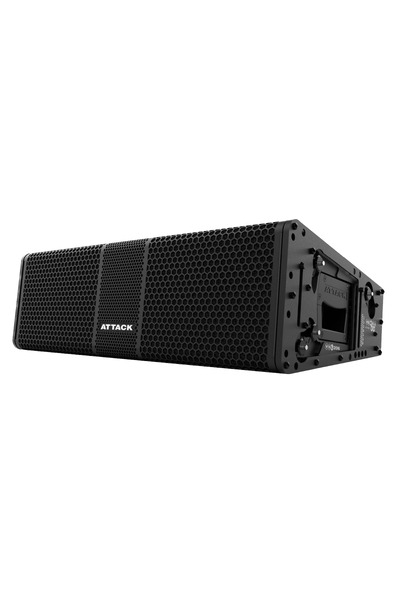

Attack Audio VSL206 is a passive toursound

  • Quality of the measurement data is medium.
  • Origin of the data is Attack Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 101.5dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 81.5dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 195.0Hz (resp. 160.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is -2.01 and would be 2.59 with a perfect subwoofer.
      • Details: NBD: ON 0.943, LW 0.924, SP 0.916, PIR 0.915; SM: SP0.217, PIR0.0; LFQ 2.681, LFX 170Hz
    • Tonality (Preference) Score is 1.14 with an EQ and would be 4.75 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.776, LW 0.745, SP 0.78, PIR 0.751; SM: SP0.765, PIR0.54; LFQ 2.241, LFX 100Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 15° vertical.
    • SPL
      • peak: 128 dB
    • Size
      • Width 650mm
      • Height 209mm
      • Depth 367mm
    • Weight 25.6kg
Attack Audio VSL206
AutomaticEQ (IIR)
Set preamp gain to: -8.0dB.
Type Freq Q Gain
LS 195.0 0.99 3.0
PK 195.0 0.25 3.0
PK 195.0 2.52 -2.41
PK 253.0 2.2 -2.97
PK 404.0 1.72 -2.99
PK 691.0 0.79 -2.93
PK 2153.0 2.98 3.0
PK 4202.0 0.39 -2.82
LS 4345.0 0.67 3.0
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Attack Audio VSL206 filters_auto_eq

AutomaticEQ

Attack Audio VSL206 filters_eq_full

Target v.s. EQ

Attack Audio VSL206
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
PK 25.0 2.14 0.75
PK 40.0 2.14 0.75
PK 63.0 2.14 0.75
PK 100.0 2.14 0.75
PK 160.0 2.14 0.75
PK 250.0 2.14 0.25
PK 400.0 2.14 0.0
PK 630.0 2.14 0.25
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.75
PK 2500.0 2.14 -0.25
PK 4000.0 2.14 0.0
PK 6300.0 2.14 0.0
PK 10000.0 2.14 0.0
PK 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Attack Audio VSL206
Graphic EQ 31 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.75
PK 31.0 4.32 0.75
PK 40.0 4.32 0.75
PK 50.0 4.32 0.75
PK 63.0 4.32 0.75
PK 80.0 4.32 0.75
PK 100.0 4.32 0.75
PK 125.0 4.32 0.75
PK 160.0 4.32 0.75
PK 200.0 4.32 0.5
PK 250.0 4.32 0.25
PK 315.0 4.32 0.25
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.25
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.75
PK 2000.0 4.32 1.0
PK 2500.0 4.32 -0.25
PK 3150.0 4.32 0.5
PK 4000.0 4.32 0.0
PK 5000.0 4.32 0.25
PK 6300.0 4.32 0.25
PK 8000.0 4.32 0.25
PK 10000.0 4.32 0.5
PK 12000.0 4.32 0.25
PK 16000.0 4.32 0.5
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Attack Audio VSL206: comparison between EQs
Attack Audio VSL206

Comparison betweens various EQs

Attack Audio VSL206

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
