- Quality of the measurement data is high.
- Origin of the data is ASR.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Measured: 85.2 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 82.0Hz (resp. 63.0Hz).
- Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.3dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.55
and would be 8.21 with a
perfect subwoofer.
- Details: NBD: ON 0.3, LW 0.293, SP 0.303, PIR 0.274; SM: SP0.934, PIR0.907; LFQ 0.661, LFX 60Hz
- Tonality (Preference) Score is 6.48
with an EQ and would be 8.84 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.211, LW 0.202, SP 0.233, PIR 0.195; SM: SP0.974, PIR0.979; LFQ 0.661, LFX 51Hz
- Tonality (Preference) Score is 5.55
and would be 8.21 with a
perfect subwoofer.
- Link to original Review: asr review. Links to other reviews: adk review .

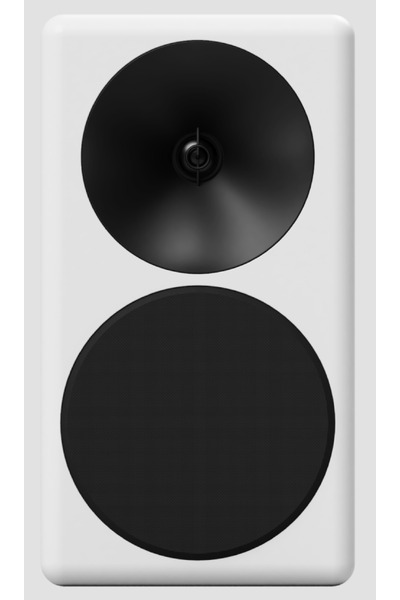

AsciLab F6Bs is a passive bookshelves that cost around 575 USD for a pair.
Vendor specifications
- Size
- Width 202mm
- Height 368mm
- Depth 154mm
- Weight 5.7kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -3.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 51.0 | 2.83 | 2.83 |
| PK | 88.0 | 2.75 | 2.54 |
| PK | 321.0 | 1.34 | 2.97 |
| PK | 522.0 | 0.53 | -4.02 |
| PK | 820.0 | 1.47 | 2.75 |
| PK | 1586.0 | 2.89 | -0.77 |
| PK | 1700.0 | 0.89 | 1.89 |
| Download | |||
