What we know about the measurement:

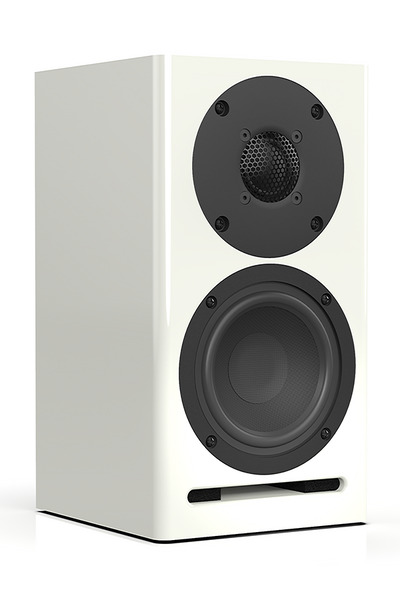

Ascend Acoustics Luna V2 Mini-Monitor Titan is a passive bookshelves that cost around 898 USD for a pair.
- Quality of the measurement data is high.
- Origin of the data is Ascend Acoustics.
- Format of the data is a set of 36 horizontal and 36 vertical measurements .
- Sensitivity: 80.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 74.7Hz (resp. 58.6Hz).
- Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 1.8dB over the same frequency range.
- Directivity
- Horizontal directivity is (-50.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.34
and would be 7.95 with a
perfect subwoofer.
- Details: NBD: ON 0.379, LW 0.317, SP 0.354, PIR 0.307; SM: SP0.954, PIR0.922; LFQ 0.691, LFX 58Hz
- Tonality (Preference) Score is 6.53
with an EQ and would be 8.73 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.254, LW 0.186, SP 0.239, PIR 0.182; SM: SP0.967, PIR0.96; LFQ 0.622, LFX 46Hz
- Tonality (Preference) Score is 5.34
and would be 7.95 with a
perfect subwoofer.
-
Vendor specifications:
- Sensitivity 82.0 dB
- Impedance 8 Ohm
- Size
- Width 146mm
- Height 270mm
- Depth 152mm
- Weight 3.75kg
