What we know about the measurement:

Arendal Sound 1528 Monitor 8 is a passive bookshelves that cost around 5900 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 42.5Hz (resp. 35.9Hz).
  • Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.7dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.41 and would be 6.86 with a perfect subwoofer.
      • Details: NBD: ON 0.483, LW 0.426, SP 0.397, PIR 0.409; SM: SP0.895, PIR0.694; LFQ 0.931, LFX 31Hz
    • Tonality (Preference) Score is 7.23 with an EQ and would be 8.01 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.377, LW 0.328, SP 0.317, PIR 0.296; SM: SP0.953, PIR0.928; LFQ 0.931, LFX 21Hz
  • Link to original Review: asr review. Links to other reviews: eac review , yt review .
  • Vendor specifications:
    • Sensitivity 85 dB
    • Impedance 4 Ohm
    • Size
      • Width 290mm
      • Height 808mm
      • Depth 448mm
    • Weight 47kg

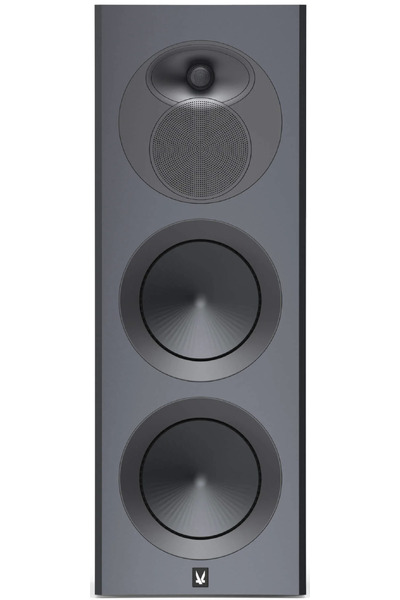

Arendal Sound 1528 Monitor 8
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
PK 22.0 2.05 2.78
PK 134.0 1.49 2.4
PK 310.0 2.97 -1.56
PK 1202.0 0.32 1.37
PK 1480.0 1.72 -2.7
PK 2862.0 1.0 2.93
PK 3405.0 0.65 -3.2
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
