- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Company: 87 dB
- Measured: 84.0 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 66.7Hz (resp. 50.5Hz).
- Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 3.7dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.57
and would be 6.79 with a
perfect subwoofer.
- Details: NBD: ON 0.399, LW 0.355, SP 0.335, PIR 0.323; SM: SP0.853, PIR0.463; LFQ 0.507, LFX 47Hz
- Tonality (Preference) Score is 6.42
with an EQ and would be 8.36 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.326, LW 0.296, SP 0.28, PIR 0.234; SM: SP0.98, PIR0.947; LFQ 0.507, LFX 41Hz
- Tonality (Preference) Score is 4.57
and would be 6.79 with a
perfect subwoofer.
- Link to original Review: eac review. Links to other reviews: yt review .

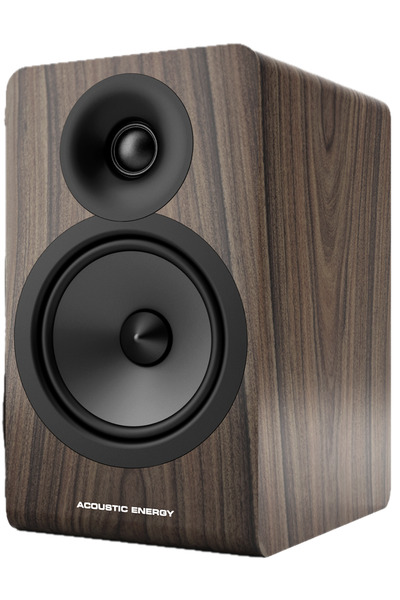

Acoustic Energy AE100 Mk2 is a passive bookshelves that cost around 500 USD for a pair.
Vendor specifications
- Impedance 6 Ohm
- SPL
- peak: 112 dB
- Size
- Width 165mm
- Height 290mm
- Depth 250mm
- Weight 4.6kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -3.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 44.0 | 1.1 | 3.0 |
| PK | 643.0 | 1.78 | 3.0 |
| PK | 849.0 | 2.56 | -3.81 |
| PK | 4989.0 | 2.99 | -2.31 |
| PK | 7566.0 | 1.66 | -2.66 |
| PK | 7834.0 | 2.95 | 1.91 |
| PK | 12736.0 | 0.59 | -3.08 |
| Download | |||
