What we know about the measurement:

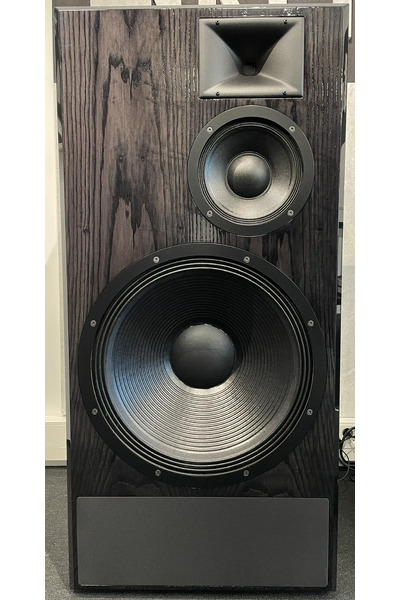

Aalto Speakers Aalto 9 is an active floorstanders that cost around 30000 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is Aalto Speakers.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 20.3Hz (resp. 20.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 8.28 and would be 8.88 with a perfect subwoofer.
      • Details: NBD: ON 0.216, LW 0.154, SP 0.203, PIR 0.157; SM: SP0.959, PIR0.952; LFQ 2.614, LFX 20Hz
  • Link to original Review: vendor review. .
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
